Product Detail
Product Parameter
Product Details

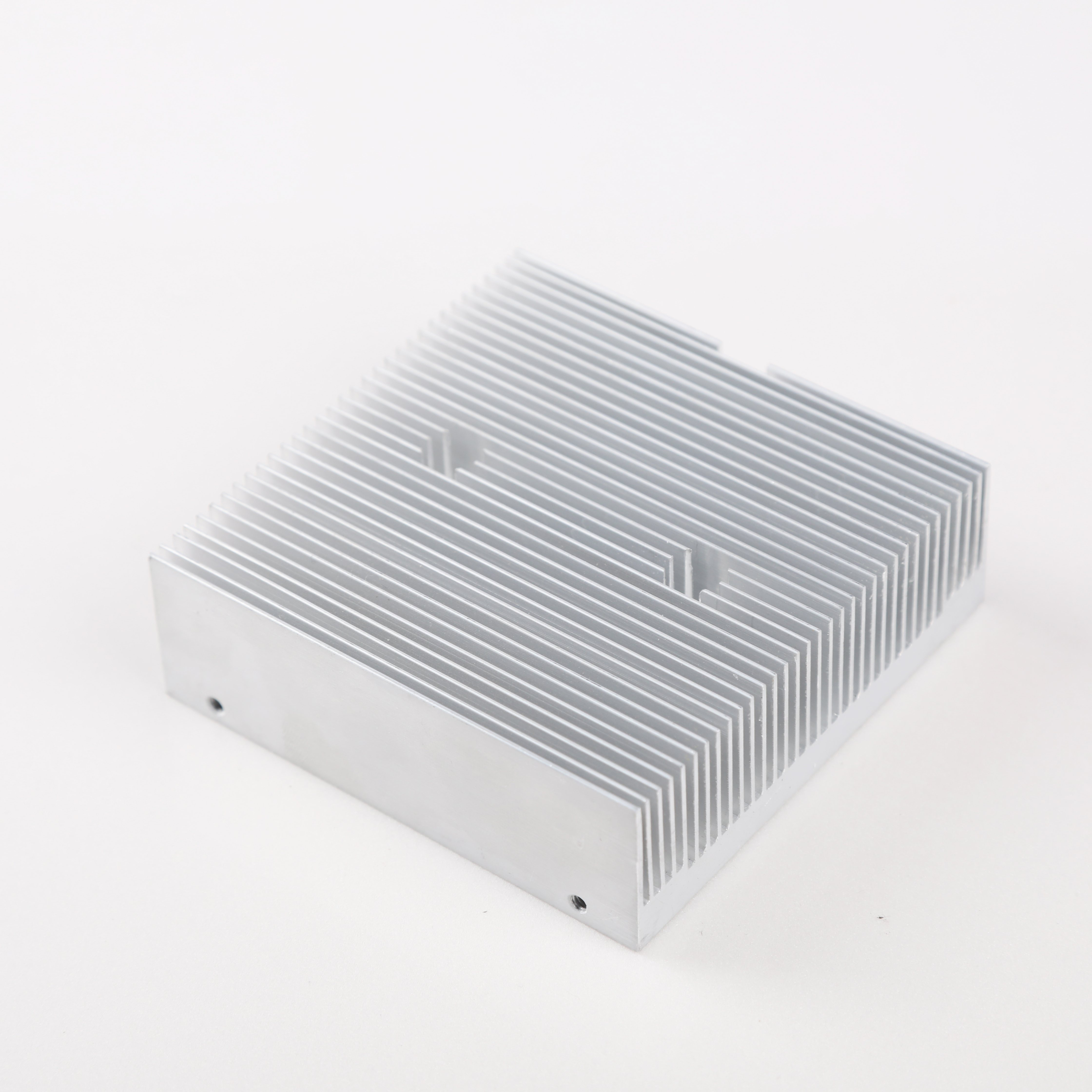

Heat sink extrusion
Size: 142(W)*71.5(H)*240(L) mm
Body Color: Silver Anodized
Body Material: Aluminum 6063
Fins Thickness: 1 mm
Baseplate Thickness: 10 mm
Application: High power LED light
Weight: 9.5 kgs/m
Supply Ability: 100000 Piece/Pieces per Month
Packaging: Standing Export Packing
Certificate: ISO 9001:2015,ISO 14001:2015
Design Parameters
|
| FIN HEIGHT/FIN GAP |
|
| FIN HEIGHT |
| 600T | <120mm | 24 | 2750T | <250mm | 21 |
| 880T | <130mm | 24 | 3000T | <320mm | 20 |
| 1000T | <150mm | 22 | 3600T | <350mm | 20 |
| 1500T | <180mm | 22 | 4000T | <400mm | 20 |
| 1800T | <200mm | 21 | 6500T | <540mm | 19 |
| 2500T | <230mm | 21 | 8000T | <700mm | 16 |
| Specification | Length:800mm; Width: 400mm; Height: 70mm |
| Material | AL6063 Aluminum Alloy |
| Surface Treatment |
Anodized black / Natural silver |
| |
Thermal conductivity: 205 W/m·K |
| |
Custom size & extrusion profile available |
| Application |
LED, inverter, power supply, communication, industrial control, new energy equipment. |
| Features |
High thermal efficiency, lightweight, good corrosion resistance, easy to install. |
| Tolerance |
Dimension tolerance: ±0.1mm~±0.5mm according to profile |
| |
Support CNC machining, drilling, tapping, milling as customized |
